Bundle for PROTAG WITH TA31 AND ACTIVATION

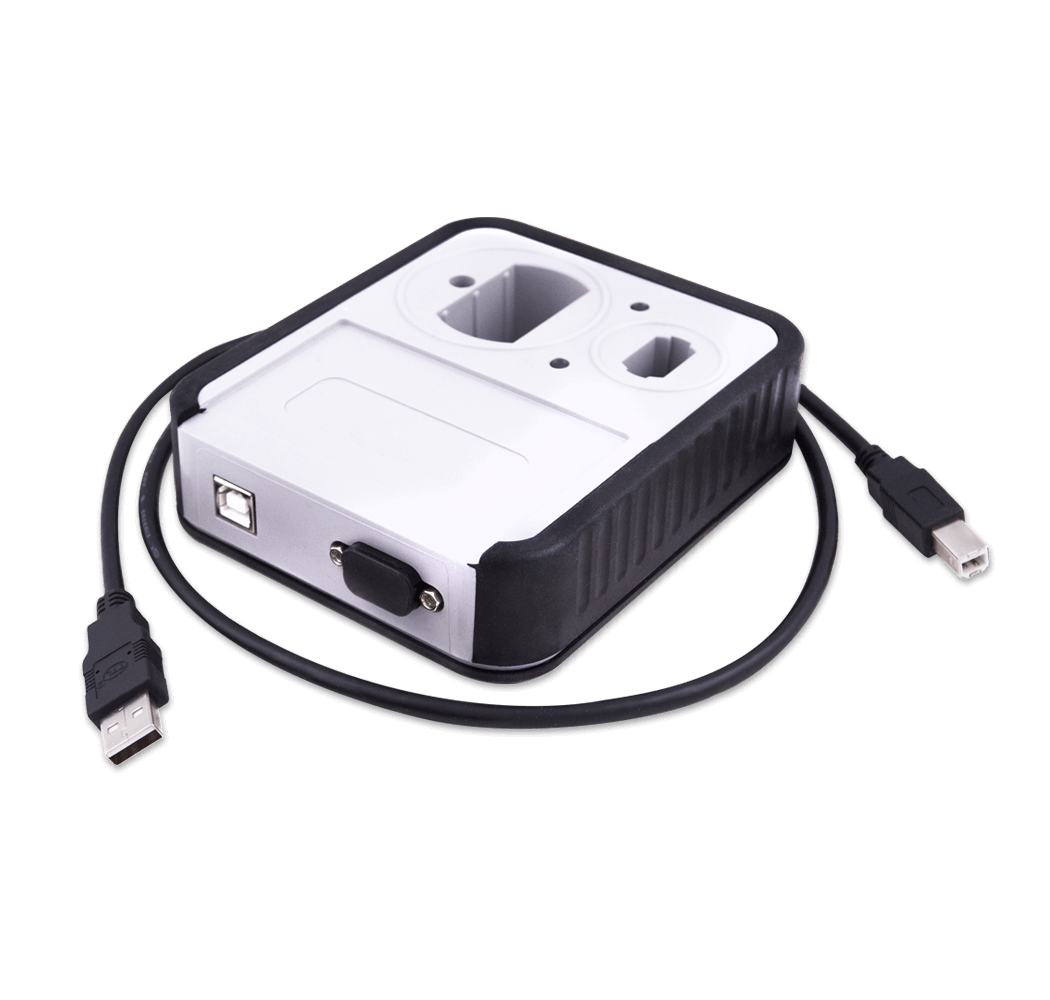

The PROTAG programmer is the latest generation tool intended for operation with keys and transponders used in the latest authentication systems and immobilizers. It provides all the current functionality of the Tag programmer and a lot more.
PROTAG is ready to program all keys and transponders produced by ABRITES.
With the PROTAG the Abrites customers will have access to a large variety of new features, it has a solution for every case where a key programmer is needed. It has a complete coverage of key identification and provides reading, programming and authenticating for Low frequency transponders (all types including latest generation transponders such as the Infra-Red keys produced by Mercedes-Benz™).
The new PROTAG programmer is also conveniently and ergonomically shaped to provide additional ease of usage and it has slots for the separate respective transponders, key and cards that need to be programmed. The PROTAG also provides more durability when used in hard conditions. It also limits the margin for transponder positioning error.
TA31 Abrites extractor is included in the box.
Features
High Frequency transponders HF 13.56 MHz
read/program/authenticate
ISO/IEC 14443 A/MIFARE Classic 1K, MIFARE Classic 4K, MIFARE Ultralight, MIFARE Ultralight C, MIFARE PLUS and MIFARE DESFire
ISO/IEC 14443 B and FeliCa
ISO/IEC15693, ICODE
Low Frequency transponders LF 125 KHz
read/program/authenticate
All types including latest generation transponders from NXP® (hitag-3, hitag-pro, hitag-aes ...), Texas® (DST-AES, CRAID-AES ....)
Radio Transceiver/Receiver/Analyser
Operating 300-348 MHz/ 387-464 MHz/ 779-928 MHz ISM/SRD bands
2-FSK, 4-FSK, GFSK, and MSK supported as well as OOK and flexible ASK shaping
Infrared Transmitter/Receiver/Analyser
Designed for Infra-Red keys produced from Mercedes-Benz™
New AVDI Interface or active AMS is required to purchase this product.
| Audi HITAG keys | 4G0959754BP 315MHz K 233.453.211 01-02, 4G0959754DB 315MHz K 233.453.211 01-02, 4G0959754DC 315MHz K 233.453.211 01-02, 4G0959754G 315MHz K 233.453.111 05-06, 4G0959754K 868MHz K 233.453.111 05-06, 4H0959754D 868MHz K 233.453.211 01-02, 4H0959754DA 433MHz K 233.453.211 01-02, 4H0959754DB 315MHz K 233.453.211 01-02, 4H0959754DD 868MHz K 233.453.211 01-02, 4H0959754G 315MHz K 233.453.111 05-06, 4H0959754K 868MHz K 233.453.111 05-06, 8K0959754BR 868MHz K 233.453.211 01-02, 8K0959754D 868MHz K 233.453.211 01-02, 8K0959754H 868MHz R 233.453.211 01-02, 8T0959754 433MHz R 233.453.111 02, 8T0959754 433MHz R 233.453.111 05-06, 8T0959754A 315MHz R 233.453.111 02, 8T0959754D 868MHz R 233.453.111 02, 8T0959754D 868MHz R 233.453.111 05-06, 8T0959754F 433MHz K 233.453.111 02, 8T0959754F 433MHz K 233.453.111 05-06, 8T0959754G 315MHz K 233.453.111 05-06 |
|---|---|
| BMW HITAG keys | E 5WK49125 868MHz REMOTE, E 5WK49127 315MHz REMOTE, E 5WK49145 868MHz KEYLESS, E 5WK49147 315MHz KEYLESS, F 5WK49661 868MHz, F 5WK49662 433MHz, F 5WK49663 315MHz, F HUF5661 868Mhz, F HUF5662 315MHz, F HUF5663 433MHz, F HUF5767 433Mhz |
| FCA HITAG keys | CHR JEEP DODGE KOBOTO4A, Chrysler Jeep Dodge M3M Keyless AES, FIAT 500X Keyless AES |
| GM HITAG keys | BUICK 13500224(13584825) 315MHz, BUICK 13500225(13584825) 315MHz, CADILLAC NBG009768T 315MHz 5BTN KEYLESS, CHEVROLET 13500221 315MHz, CHEVROLET 13500319(13584829) 315MHz 5BTN, CHEVROLET 13575163 433MHz 2BTN, CHEVROLET 13575175 433MHz 3BTN, GM KEYLESS 433MHz 5BTN, OPEL 13149658 Zafira B, OPEL ASTRA J/INSIGNIA 13500234 433MHz 3BTN |
| Land Rover HITAG keys | RANGE ROVER 5E0U40247 434MHz |
| Mitsubishi HITAG keys | G8D 644M |
| Porsche HITAG keys | 7PP959753AJ 433MHz, 7PP959753BN 434MHz, 7PP959753BQ 315MHz, 7PP959753BS 434MHz |
| PSA HITAG keys | E25CI009, E28CI01B, E33CI002, 21676652 |
| Renault HITAG keys | RENAULT AES 433MHz 7945(53)MC2200, RENAULT DACIA AES 2244706 434MHz, RENAULT DACIA AES TWE1G0003 434MHZ, RENAULT FLUENCE 3BTN 61A001 (AK010008), RENAULT KEYLESS AES 433MHz 7953MC2200, RENAULT MEGANE3 285970036R, RENAULT MEGANE3 KEYLESS 285975779R, RENAULT MEGANE3 KEYLESS 285979045R |
| Volvo HITAG keys (for vehicles produced after 2007) | KR55WK49266 900 MHz, KR55WK49269 433 MHz |
ZN002 - PROTAG Programmer & TA31
KT010 - Tag Key Tool
